Product Overview
Category: Stainless Steel PumpsLQ Series Rotary Lobe Pump. Industrial pumping equipment engineered for reliable operation and project-specific selection. Contact Shenyin Pump for duty-point review, materials and configuration options.
- Duty-point review and pump selection support
- Outline drawings and installation instructions available
Export inquiry support
Need help selecting LQ Series Rotary Lobe Pump?
Send flow, head, medium, temperature, voltage/frequency, quantity and destination country. Our engineering team can review duty point, materials, seal type and configuration for OEM, EPC and export projects.
Technical Information
The information below is for reference. Final order data is subject to the technical agreement and product nameplate.
I. Product Overview
LQ series rotary lobe pump is a positive-displacement pump for high-viscosity, sanitary, and shear-sensitive materials. It is widely used in food, beverage, dairy, pharmaceutical, cosmetic, and fine chemical applications.
II. Product Features
Stable positive-displacement flow for viscous materials.
Stainless steel wetted parts can meet sanitary process needs.
Low shear transfer is suitable for selected food and pharmaceutical liquids.
Connection, seal, and rotor options can be selected by process requirements.
III. Main Applications
Used for jam, syrup, dairy products, beverages, pharmaceuticals, cosmetics, detergents, colloids, and similar materials.
IV. Selection Notes
Confirm viscosity, temperature, particle condition, flow, pressure, connection standard, and cleaning method. Hard particles should be avoided unless the configuration is confirmed.
V. Maintenance Recommendations
Inspect seals, rotor clearance, bearing temperature, and pipeline vibration. Clean the pump chamber after materials that solidify or deposit.

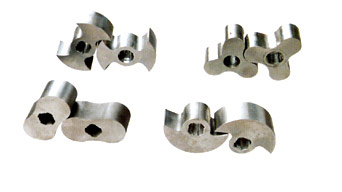

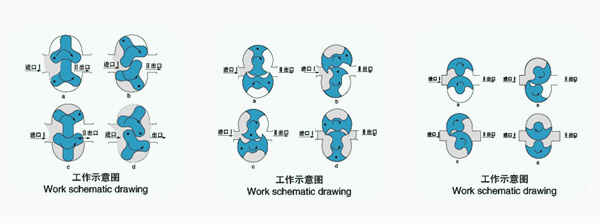

Product Diagrams and Reference Images
Model Designation
LQ3A-20
Rotary lobe pump series code
Structure type code
Displacement of 20L per 100 revolutions
